Front Seat Back Blower

  1. Remove the front seat back cover.

    (Refer to Body - "FRONT SEAT BACK COVER ")

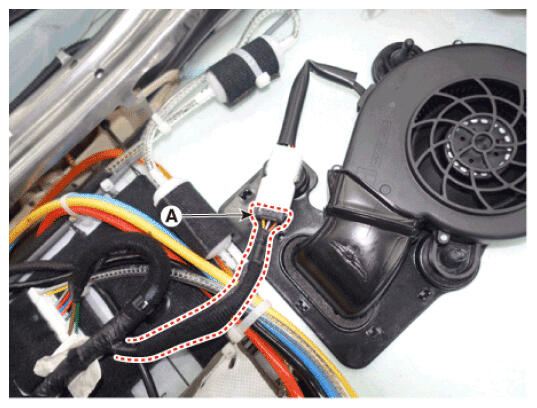

  2. Disconnect the seat back blower connector (A).
    G16855866Courtesy of HYUNDAI MOTOR AMERICA

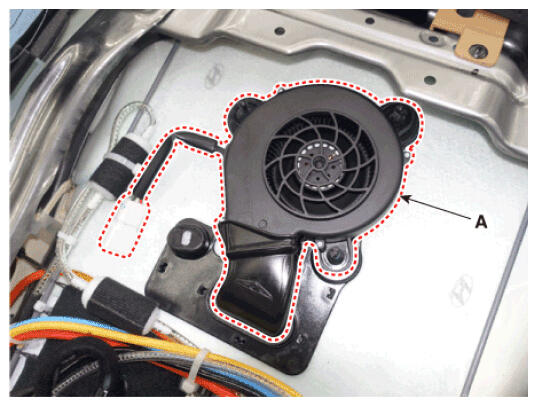

  3. Remove the seat back blower (A).
    G16855867Courtesy of HYUNDAI MOTOR AMERICA
