Rear Door Trim: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.

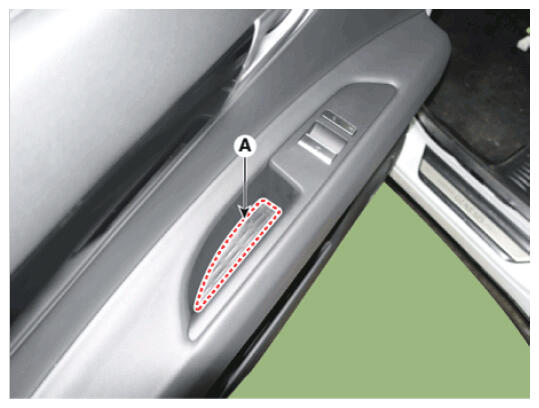

- Remove the rear door full handle cap (A).

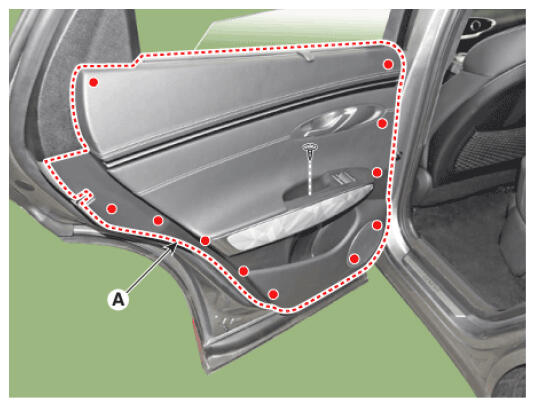

- Loosen the mounting screw, remove the rear door trim (A).
Information

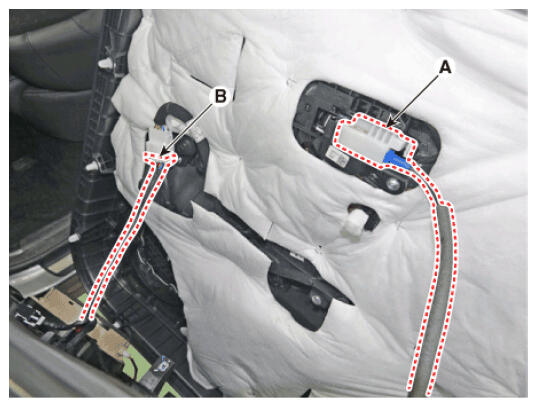

- Disconnect the rear door inside handle cage (A) and rear door connector (B).
- To install, reverse the removal procedure.
Information
- Be sure to replace the clip (fastener) when re-installing after detaching the door trim.
* In case of non-exchange, watertightness/exit problems may occur
Water tightness prevention - Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
- Make sure the glass is operated properly.
- Be sure to replace the clip (fastener) when re-installing after detaching the door trim.
