Rear Door Curtain Assembly: Replacement

  1. Remove the rear door trim.

    Refer to Rear Door - "REAR DOOR TRIM ")

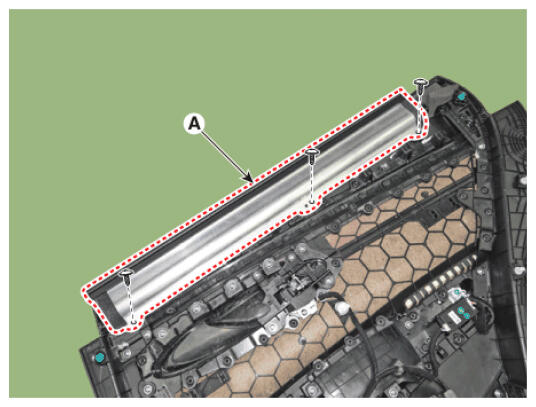

  2. Loosen the mounting screws, remove the rear door curtain assembly (A).
    G16855204Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.
