Fuel Filler Door Release Actuator: Inspection

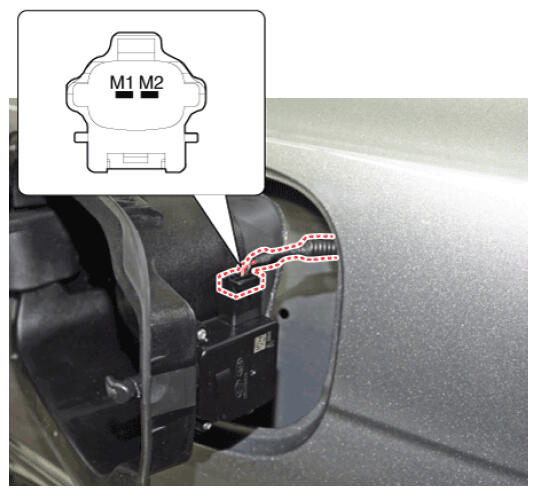

1. Disconnect the release actuator connector.
2. With the actuator in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the release actuator.

Courtesy of HYUNDAI MOTOR AMERICA

OPERATION TERMINAL	LOCK	UNLOCK
M1	-	+
M2	+	-
