Front and Rear Washer Motor
- With the washer motor connected to the reservoir tank, fill the reservoir tank with water.NOTE: Before filling the reservoir tank with water, check the filter for foreign material or contamination. If necessary, clean the filter.
- Connect positive (-) battery cables to terminal 1 and negative (+) battery cables to terminal 2 respectively.
- Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.
- If they are abnormal, replace the washer motor.

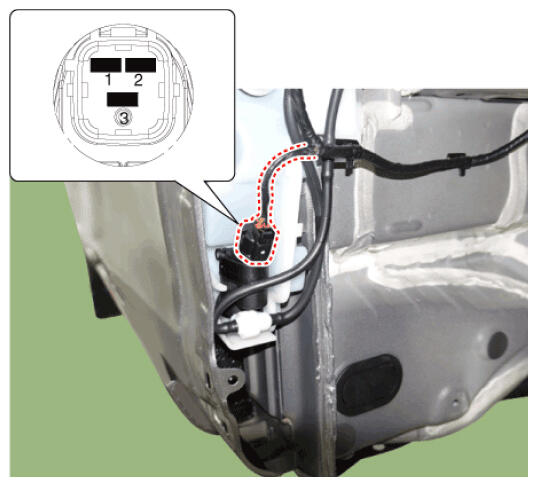

No Description 1 Ground 2 Windshield washer (+) 3 Rear washer (+)
