Crash Pad Center Panel: Replacement: [LH]

Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
Remove the crash pad garnish [RH].
(Refer to Crash Pad - "CRASH PAD GARNISH ")
Remove the AVN head unit.
(Refer to Body Electrical System - "AVN HEAD UNIT ASSEMBLY ")

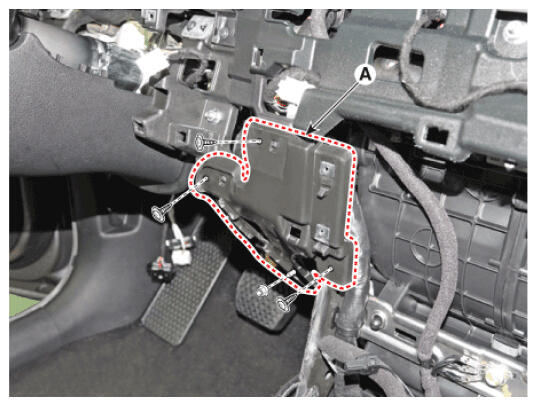

Loosen the mounting screws and nut, remove the crash pad center panel [LH] (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
