Vehicle S/W Management

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Select "Audio Video Navigation" system and perform "Vehicle S/W Management" with GDS.
  4. Perform "AVN/Audio Diagnostic Mode" of "Vehicle S/W Management".

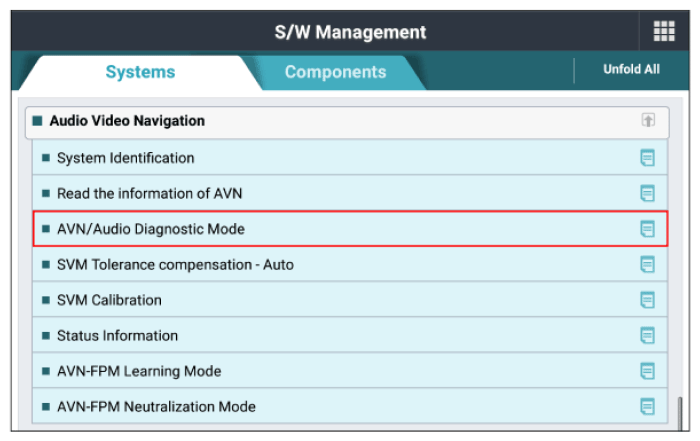

    G16841057Courtesy of HYUNDAI MOTOR AMERICA

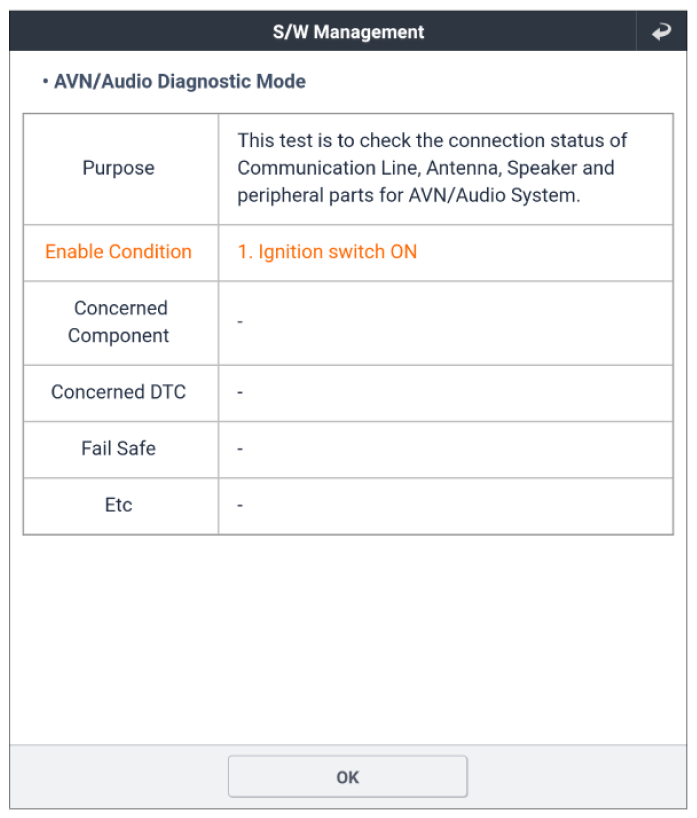

    G16841058Courtesy of HYUNDAI MOTOR AMERICA

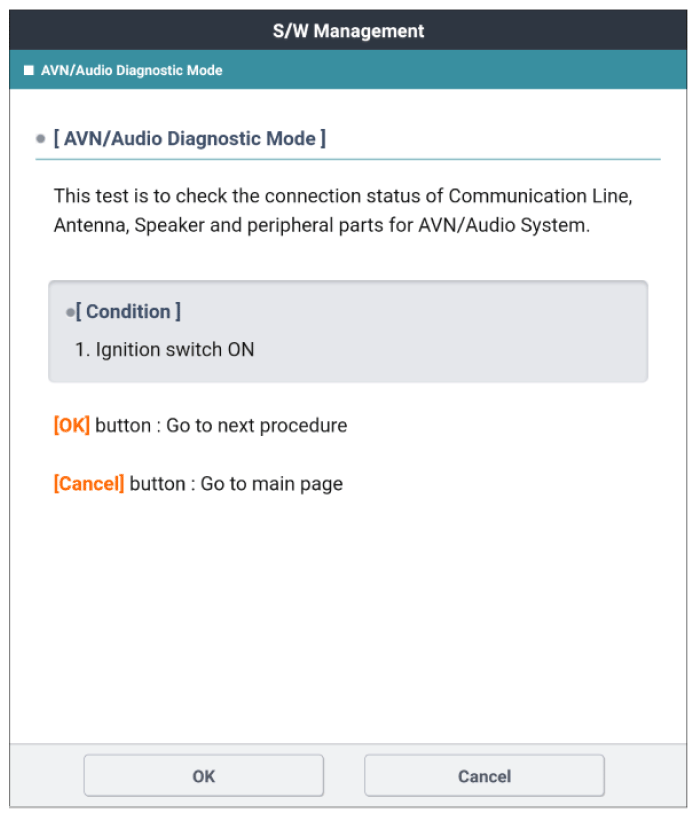

    G16841059Courtesy of HYUNDAI MOTOR AMERICA

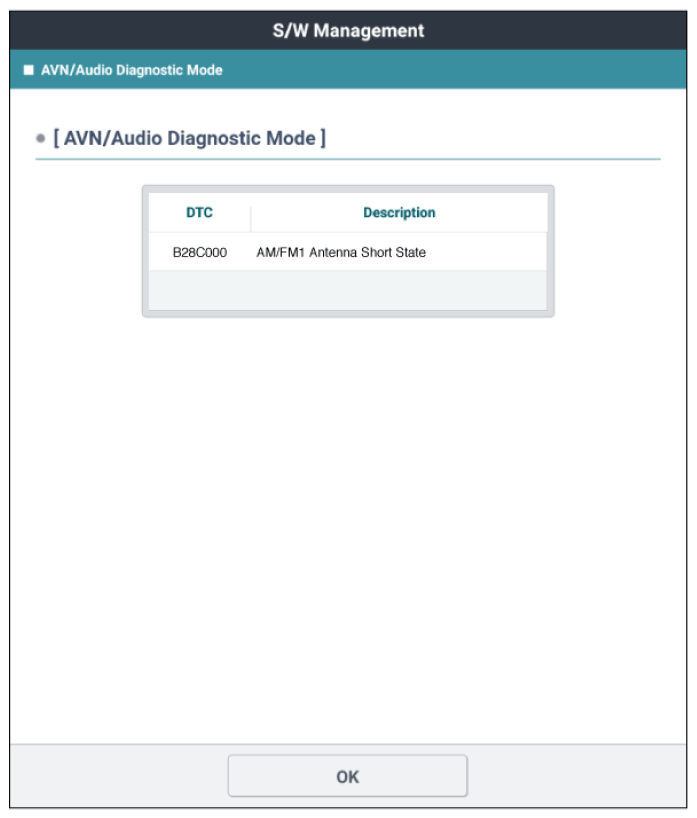

    G16841060Courtesy of HYUNDAI MOTOR AMERICA
