Diagnostic Flowchart

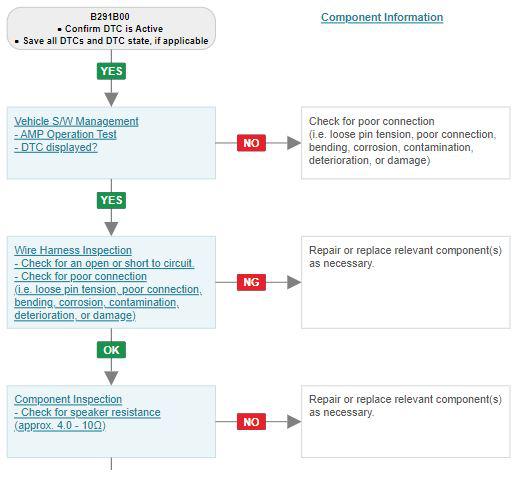

Fig 1: B291B-00 (1 Of 2)
G14729540Courtesy of HYUNDAI MOTOR AMERICA

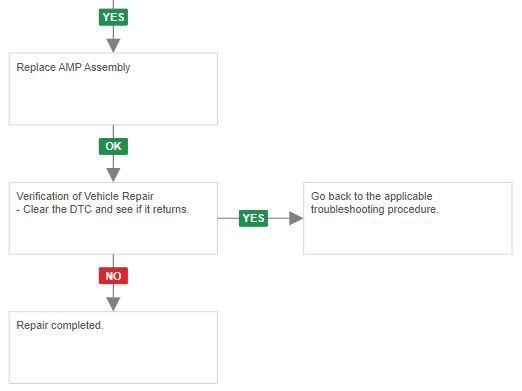

Fig 2: B291B-00 (2 Of 2)
G00621422Courtesy of HYUNDAI MOTOR AMERICA
