Rear turn signal lamp

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper assembly.

    (Refer to Body - "REAR BUMPER ASSEMBLY ")

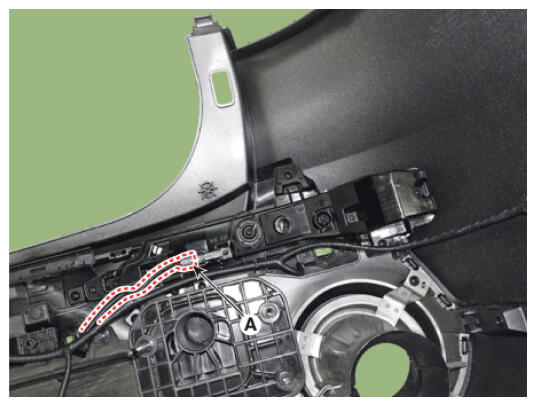

  3. Disconnect the turn signal lamp connector (A).
    G16856198Courtesy of HYUNDAI MOTOR AMERICA

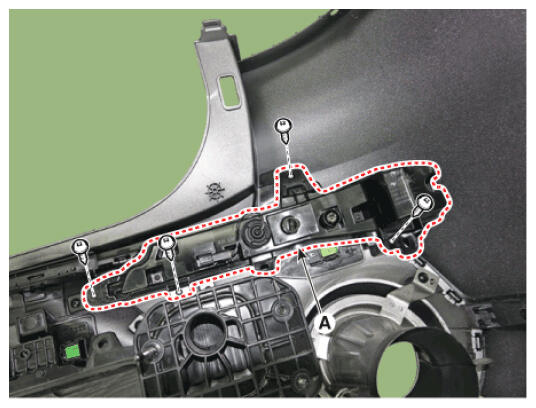

  4. Remove the turn signal lamp (A) after loosening mounting screws.
    G16856199Courtesy of HYUNDAI MOTOR AMERICA
