Room lamp (1)

  1. Disconnect the negative (-) battery terminal.

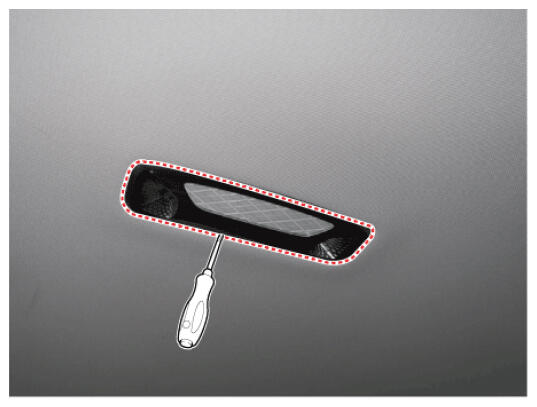

  2. Using a flat-tip screwdriver and remove the room lamp.
    G16856200Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the room lamp after disconnecting the lamp connector (A).
    G16856201Courtesy of HYUNDAI MOTOR AMERICA
