Rear Inside Handle Mood Lamp

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

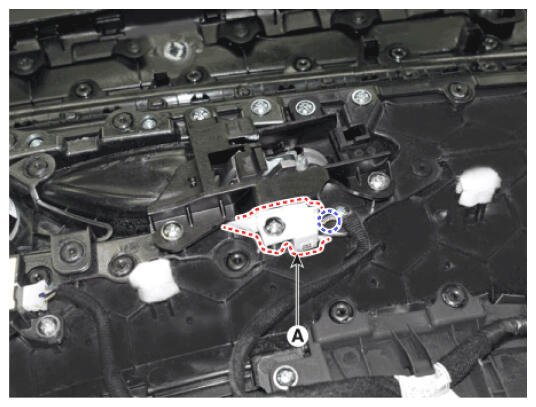

  3. Remove the mood lamp (A) disconnecting the mood lamp connector.
G16856239Courtesy of HYUNDAI MOTOR AMERICA
