Front Inside Handle Mood Lamp

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

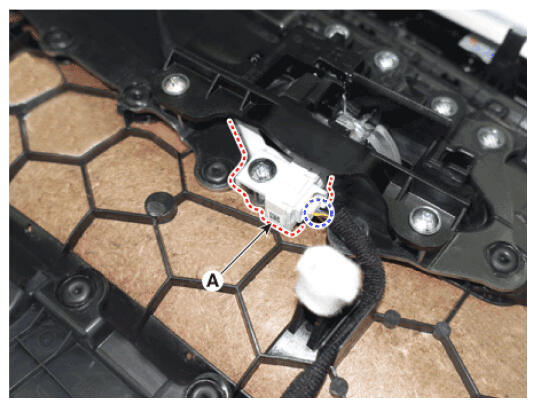

  3. Disconnect the mood lamp connector (A).
G16856238Courtesy of HYUNDAI MOTOR AMERICA
