Vehicle S/W Management

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Select "Audio Video Navigation" system and perform "Vehicle S/W Management" with GDS.
  4. Perform "AVN/Audio Diagnostic Mode" of "Vehicle S/W Management".

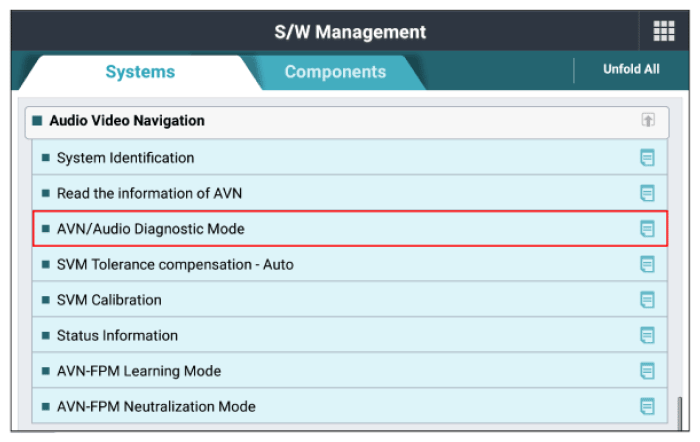

    G16841077Courtesy of HYUNDAI MOTOR AMERICA

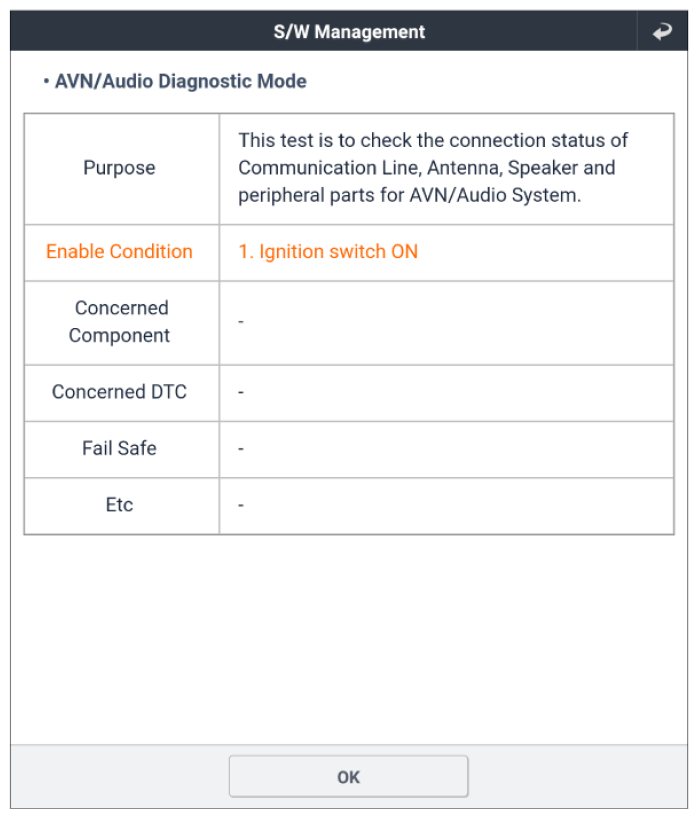

    G16841078Courtesy of HYUNDAI MOTOR AMERICA

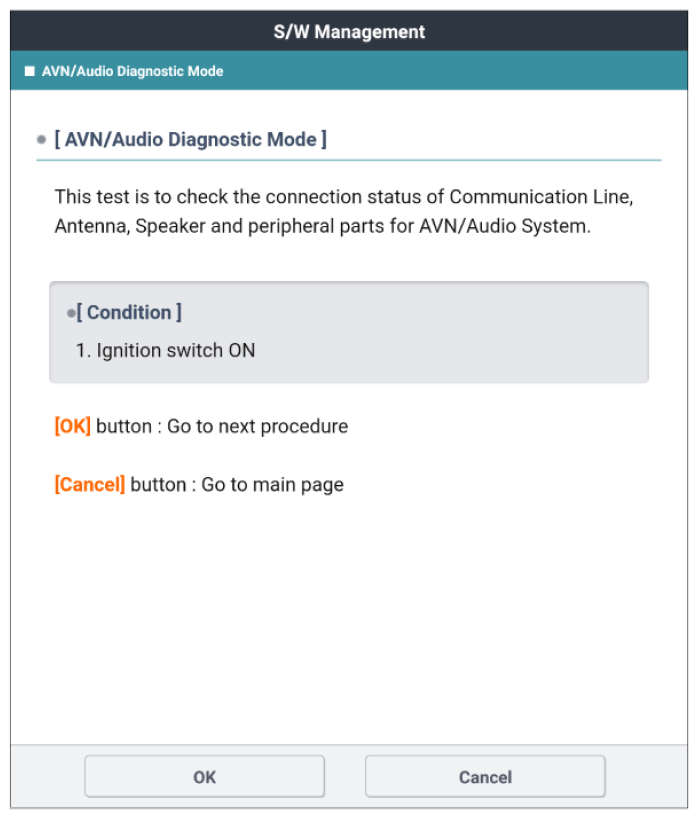

    G16841079Courtesy of HYUNDAI MOTOR AMERICA

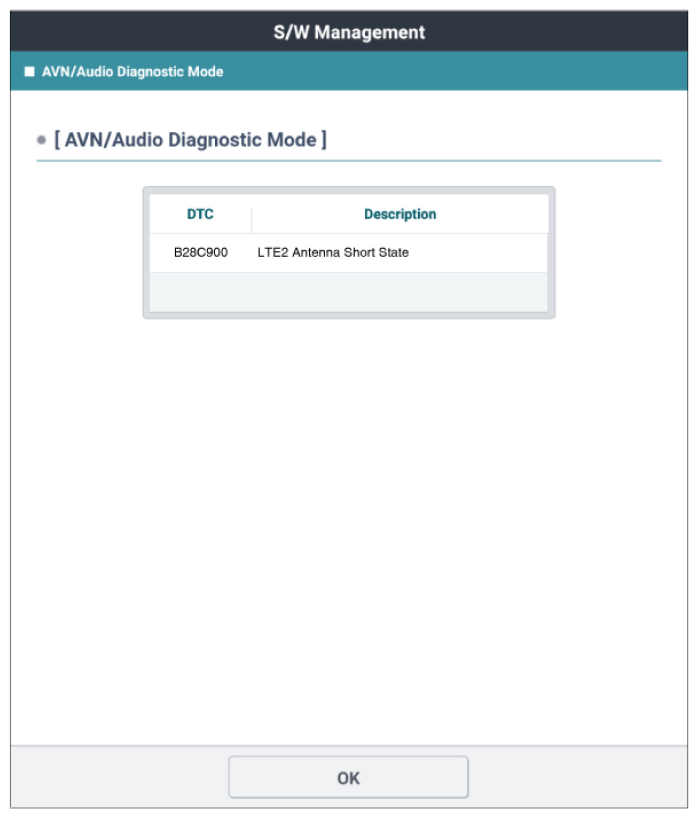

    G16841080Courtesy of HYUNDAI MOTOR AMERICA
