Vehicle S/W Management

  1. Plug GDS to Data Link Connector (DLC).
  2. Turn "ON" the ignition switch.
  3. Select "AMP" system and perform "Vehicle S/W Management" with GDS.

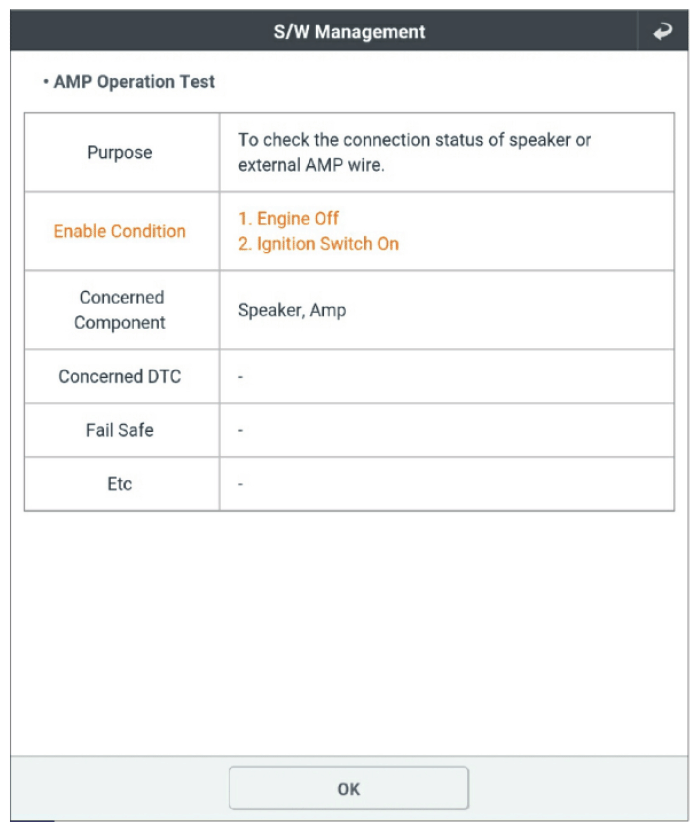

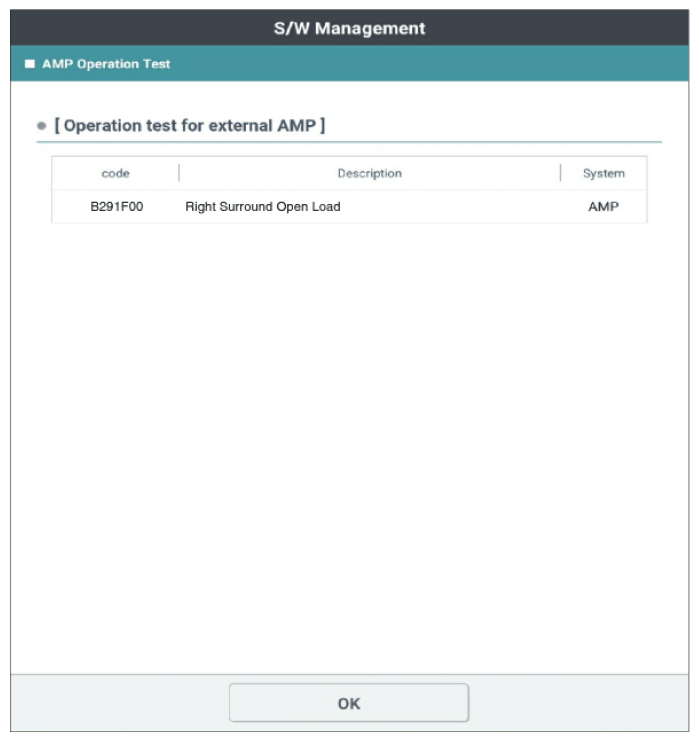

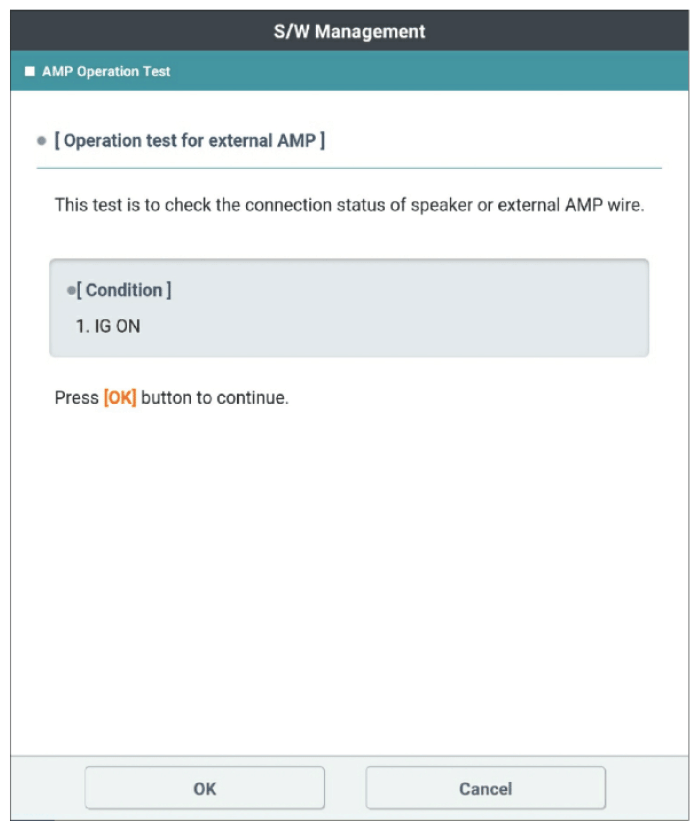

  4. Perform "AMP Operation Test" of "Vehicle S/W Management".
G16850114Courtesy of HYUNDAI MOTOR AMERICA
G16850115Courtesy of HYUNDAI MOTOR AMERICA
G16850116Courtesy of HYUNDAI MOTOR AMERICA
G16850117Courtesy of HYUNDAI MOTOR AMERICA
