Diagnostic Flowchart

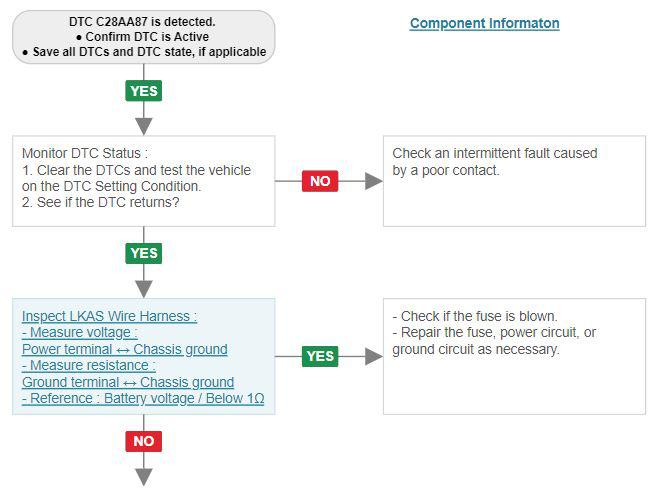

Fig 1: C28AA-87 (1 Of 3)
G14729213Courtesy of HYUNDAI MOTOR AMERICA

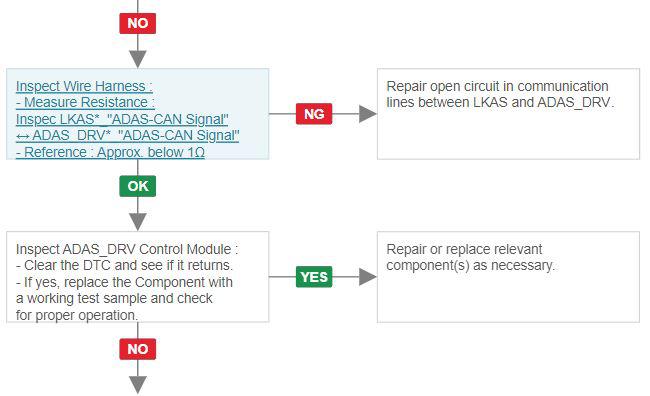

Fig 2: C28AA-87 (2 Of 3)
G00625994Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: C28AA-87 (3 Of 3)
G00625998Courtesy of HYUNDAI MOTOR AMERICA
