Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to bend or scratch the trim and panels.

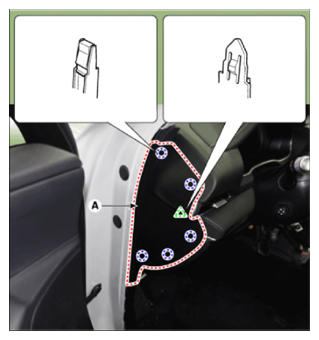

Using a flat-tip screwdriver or remover and remove the crash pad side cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
