Glove Box: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Take care not to bend or scratch the trim and panels.

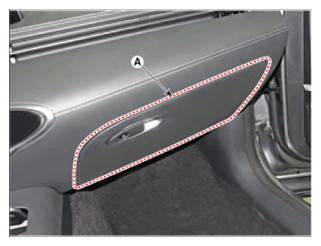

Open the glove box (A).

Courtesy of HYUNDAI MOTOR AMERICA

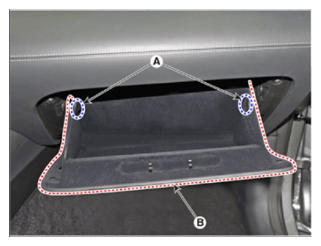

Pull out the both sides stopper (A) from the glove box (B).

Courtesy of HYUNDAI MOTOR AMERICA

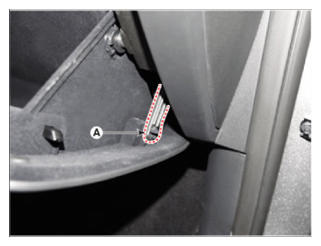

Separate the lock pin and then remove the air damper (A).

Courtesy of HYUNDAI MOTOR AMERICA

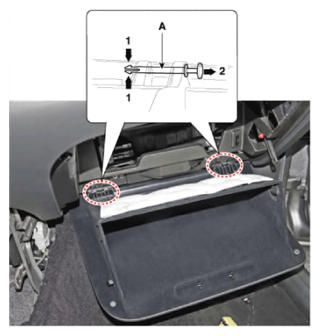

Remove the lock pins (A) and then remove the glove box.

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
