Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad air vent [LH], [RH].

    (Refer to Body - "CRASH PAD AIR VENT ")

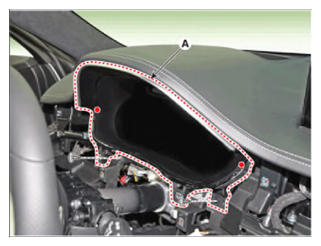

  3. Loosen the mounting screws and remove the cluster fascia panel (A).
    G14764637Courtesy of HYUNDAI MOTOR AMERICA

    Information

    G14764638Courtesy of HYUNDAI MOTOR AMERICA

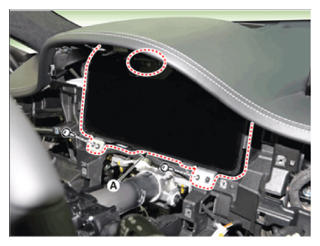

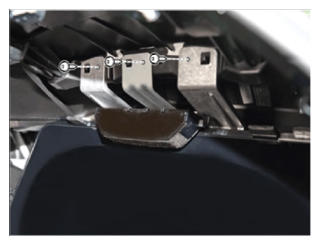

  4. Remove the cluster (A) after loosening mounting screws.
    G14764639Courtesy of HYUNDAI MOTOR AMERICA
    G14764640Courtesy of HYUNDAI MOTOR AMERICA

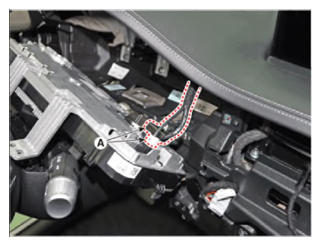

  5. Disconnect the cluster connector (A).
    G14764641Courtesy of HYUNDAI MOTOR AMERICA
