Head Up Display

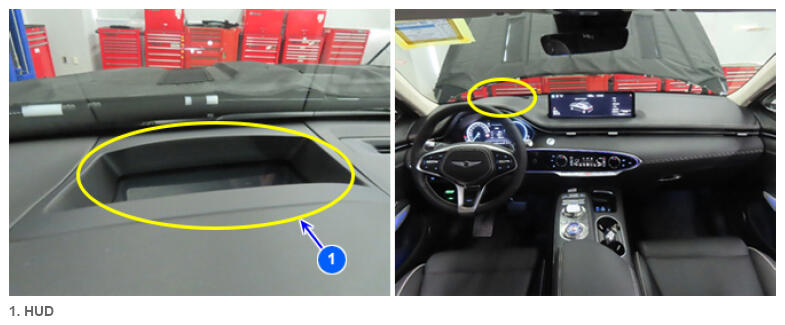

HUD* is a convenience device that minimizes the driver's gaze shift by displaying information necessary for the driver such as driving information, vehicle speed and warning light on the windshield of the vehicle.
| Component | Name_ETM | Description | ETM |
|---|---|---|---|
| HUD* | "HEAD UP DISPLAY" | Head Up Display | SD943-1 |
| ICU* | → "ICU JUNCTION BLOCK" | → [CGW+SJB] Integrated Central control Unit | |
| CGW | → "ICU JUNCTION BLOCK IPS CONTROL MODULE" | → Central GateWay | |
| SJB | → "ICU JUNCTION BLOCK" | → Smart Junction Block | |
| ESU | → "ICU JUNCTION BLOCK_ESU" | → Ethernet Switch Unit |
