Removal & Installation: Removal
CAUTION:
- Apply the protective tape to the tool when disassembling the components with the screwdriver or remover.
- Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil.
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")

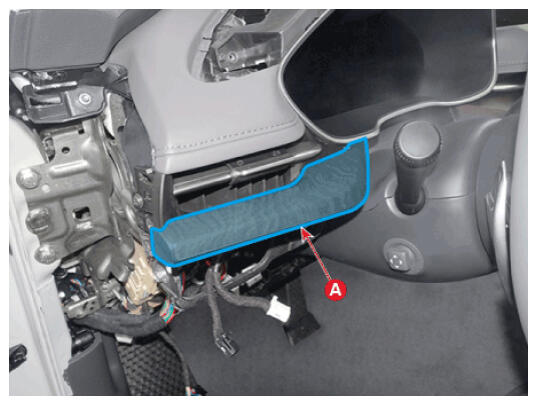

- Loosen the mounting screws and remove the crash pad garnish (A).

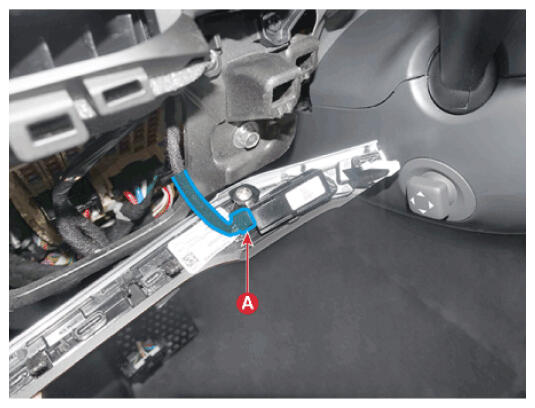

- Disconnect the mood lamp connector and then remove the crash pad garnish [LH].

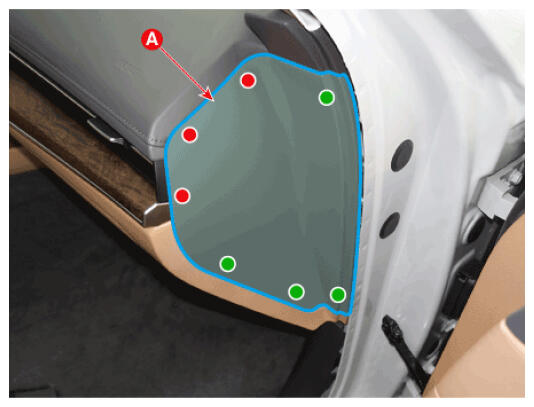

- Remove the passenger crash pad side cover (A).
Information

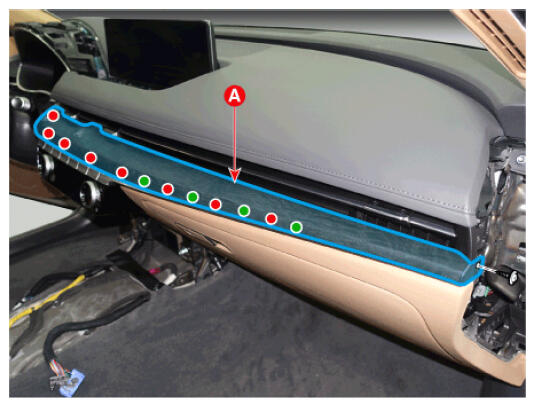

- Using a flat-tip screwdriver or remover, remove the crash pad garnish (A) after loosening the mounting screws.
Information

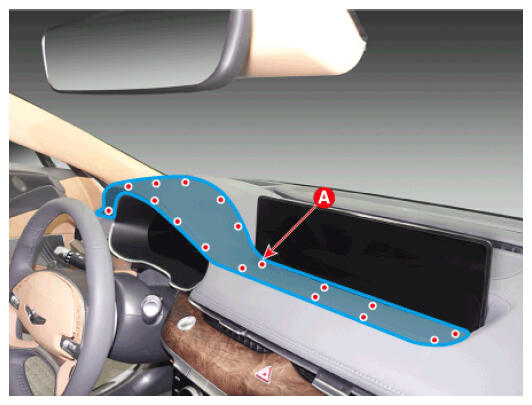

- Using a flat-tip screwdriver or remover, remove the crash pad upper garnish (A).
Information

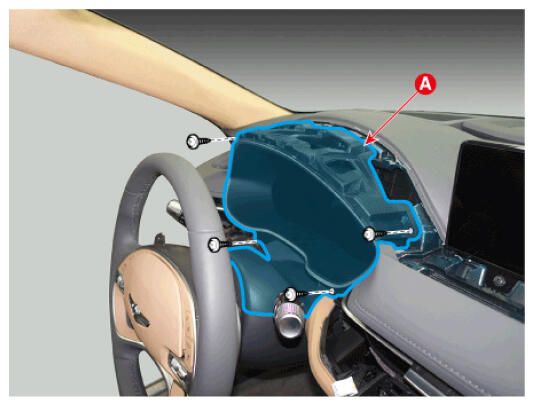

- Remove the cluster fascia panel (A) after loosening the mounting screws.

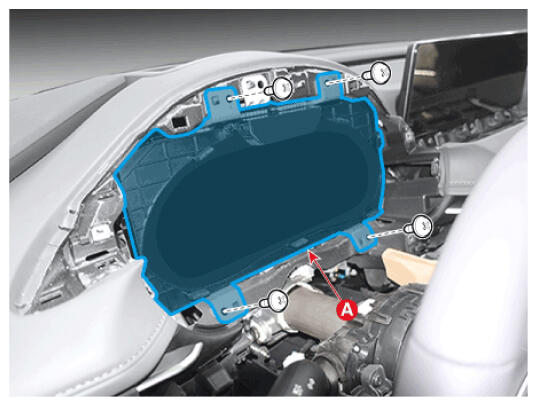

- Remove the instrument cluster (A) after loosening the mounting screws.

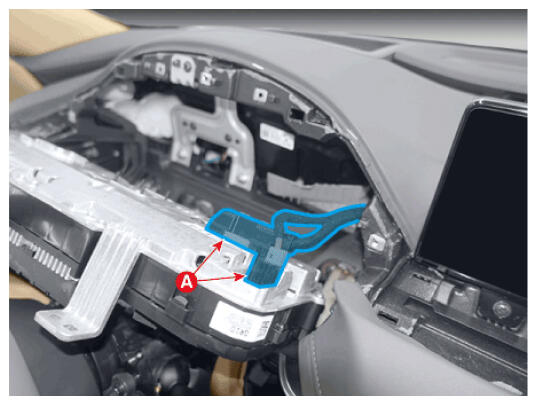

- Disconnect the connector (A) and remove the instrument cluster.
