Steering Column Shroud Upper Panel

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

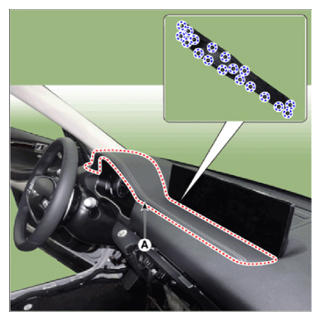

Using a remover, remove the cluster fascia upper garnish (A).

Courtesy of HYUNDAI MOTOR AMERICA

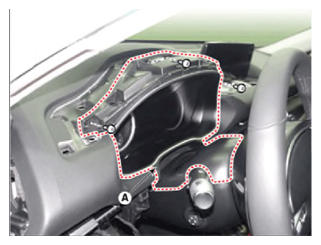

Loosen the mounting screws and remove the cluster fascia panel & steering column shroud upper panel assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
