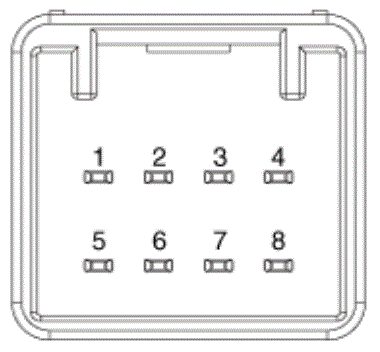

Harness Connector
WARNING: This page is about a different variant/trim than selected.
 Courtesy of HYUNDAI MOTOR AMERICA
|
| Terminal |
Function |
Operating voltage (V) |
Max current (A) |
| 1 |
IGN1 input |
9 - 16V |
0.5A |
| 2 |
RPM signal input |
0 - 16V |
- |
| 3 |
Speed signal input |
0 - 16V |
- |
| 4 |
Solenoid (+) |
9 - 16V |
5A |
| 5 |
Battery (B+) |
9 - 16V |
5A |
| 6 |
- |
- |
- |
| 7 |
Ground |
- |
- |
| 8 |
- |
- |
- |
