Removal and Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal.
- Remove the crash pad lower panel.
(Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

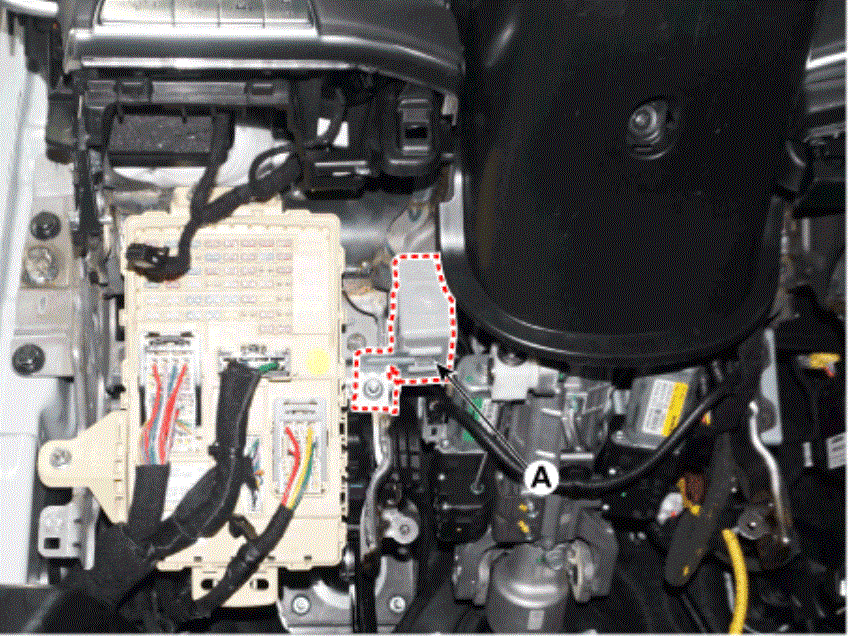

- Disconnect the connector and then remove the semi active engine control unit (A).
Tightening torque:
3.6 - 4.0 N.m (0.37 - 0.41 kgf.m, 2.7 - 3.0 lb-ft)
- Installation is reverse order of removal.
