RH Engine Room Side Cover

WARNING: This page is about a different variant/trim than selected.

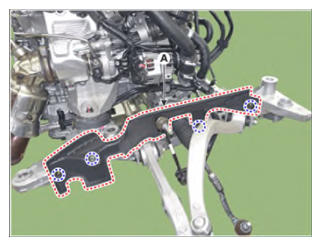

  1. Remove the RH engine room side cover (A).

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.0 - 10.1 lb-ft)

    G14720694Courtesy of HYUNDAI MOTOR AMERICA
  2. Installation is reverse order of removal.
