Transmission mounting assembly

WARNING: This page is about a different variant/trim than selected.

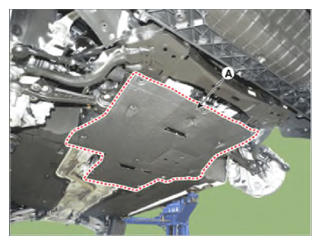

Remove the engine room rear under cover (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the jack under the transmission to support the transmission.
NOTE:
- Install the jack under the transmission to support the transmission.

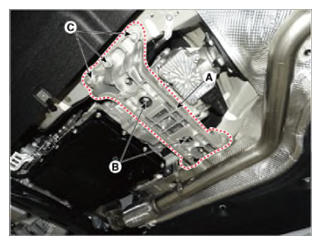

Remove the transmission mounting assembly (A).
Tightening torque:

Bolts, Nuts (B):

2WD (Nuts): 29.4 - 34.3 N.m (3.0 - 3.5 kgf.m, 21.7 - 25.3 lb-ft)

AWD (Bolts): 63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)

Bolts (C): 58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Installation is in the reverse order of removal.

NOTE:

After provisionally tightening both the B and C bolts, first fully tighten the B bolt and then C bolt.

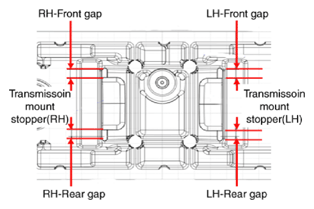

After tightening the bolts, the transmission mount stopper and the cross member must be installed so that all the LH/RH, front/rear 4 gaps are more than 4 mm and not to become eccentric.
