LH Engine Mounting Bracket
WARNING: This page is about a different variant/trim than selected.
- Remove the front cross member.
(Refer to Suspension System - "FRONT CROSS MEMBER ")

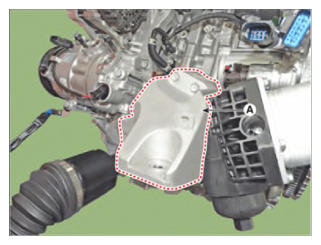

- Remove the LH engine mounting support bracket (A).
Tightening torque:
49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft)

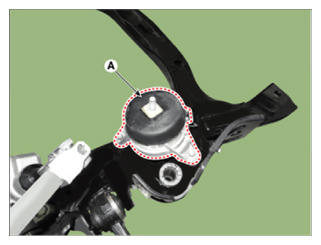

- Remove the LH engine mounting assembly (A).
Tightening torque:
53.9 - 68.6 N.m (5.5 - 7.0 kgf.m, 39.8 - 50.6 lb-ft)
- Installation is reverse order of removal.
