Components & Components Location: Components: (AWD)

WARNING: This page is about a different variant/trim than selected.

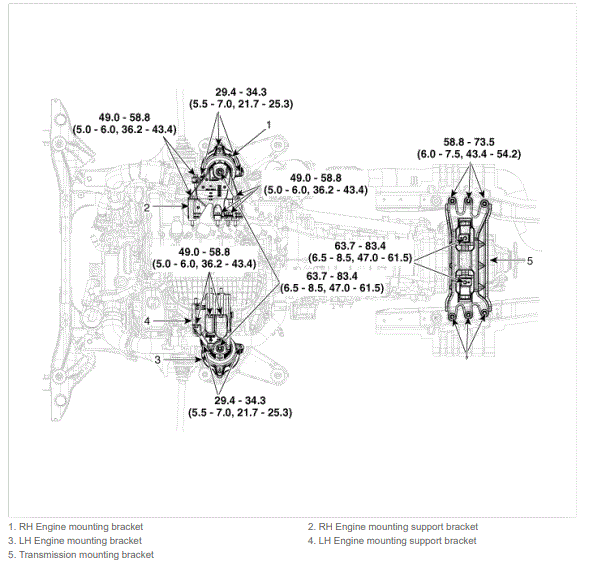

Fig 1: Engine Mounting Components Location With Torque Specifications (AWD)
G14720700Courtesy of HYUNDAI MOTOR AMERICA
