Components & Components Location: Components: (2WD)

WARNING: This page is about a different variant/trim than selected.

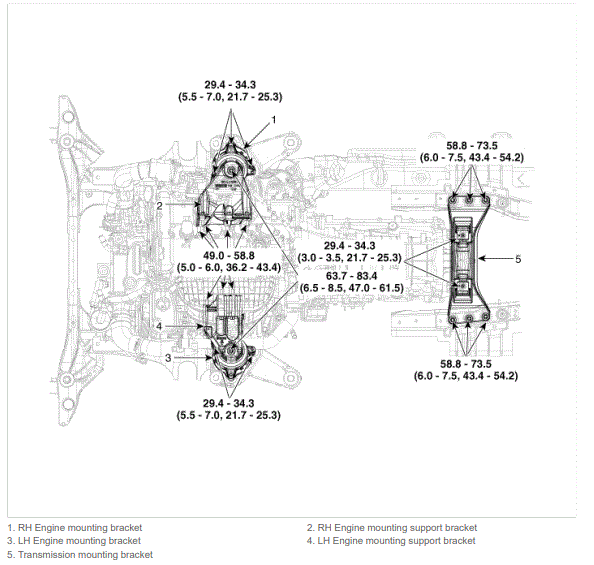

Fig 1: Engine Mounting Components Location With Torque Specifications (2WD)
G14720699Courtesy of HYUNDAI MOTOR AMERICA
