Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the water cooled intercooler.
(Refer to Intake And Exhaust System - "WATER COOLED INTERCOOLER ")

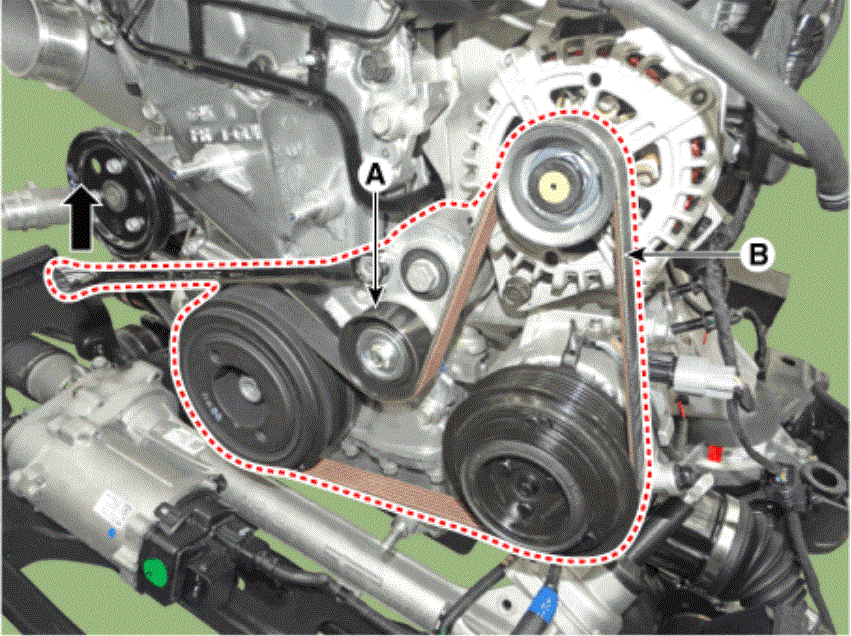

- For release the tension, turn the drive belt tensioner (A) clockwise then remove the drive belt (B).
- Remove the water pump belt.

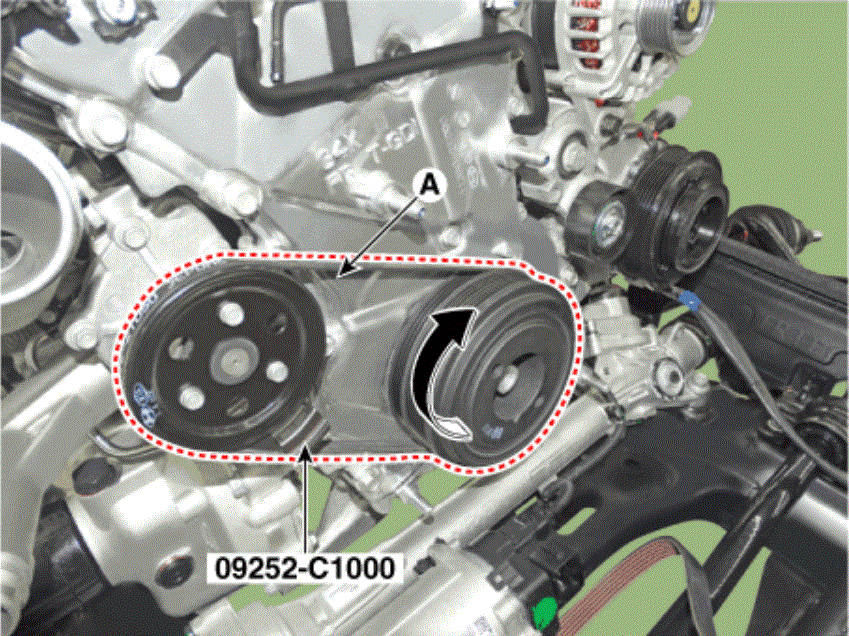

- Insert the SST (09252-C1000) between the water pump pulley and the water pump belt.
- Remove the water pump belt (A) by turning the damper pulley clockwise.
