Drive Belt Tensioner Bracket
WARNING: This page is about a different variant/trim than selected.
- Remove the drive belt tensioner.
- Remove the water cooled intercooler reservoir tank.
(Refer to Cooling System - "RESERVOIR TANK ")
- Remove the alternator.
(Refer to Engine Electrical System - "ALTERNATOR ")
- Remove the A/C compressor.
(Refer to Heating, Ventilation and Air Conditioning - "COMPRESSOR ")

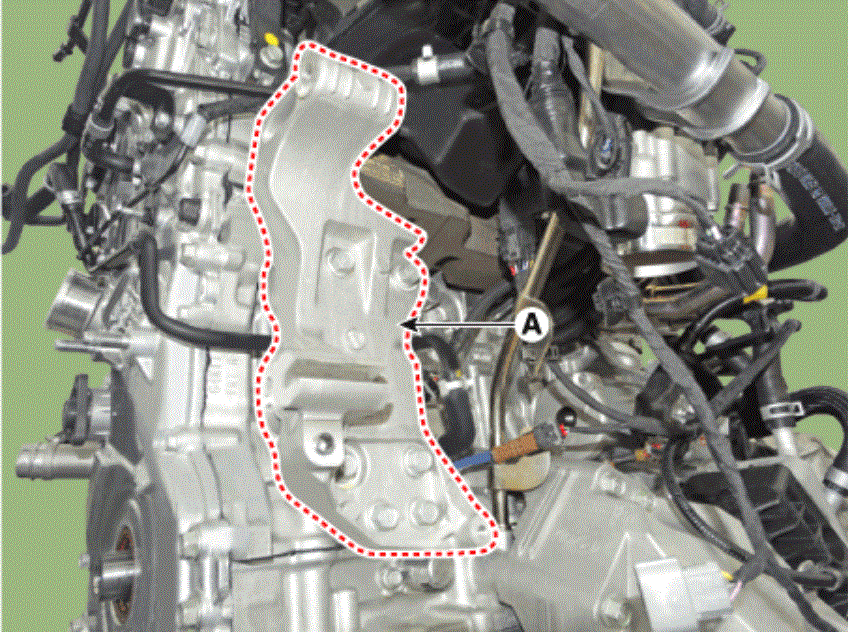

- Remove the drive belt tensioner bracket (A).
Tightening torque:
39.2 - 44.1 N.m (4.0 - 4.5 kgf.m, 28.9 - 32.5 lb.ft)
- Install in the reverse order of removal.
