Removal and Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")
- Remove the drive belt and water pump belt.
(Refer to Drive Belt System - "DRIVE BELT ")

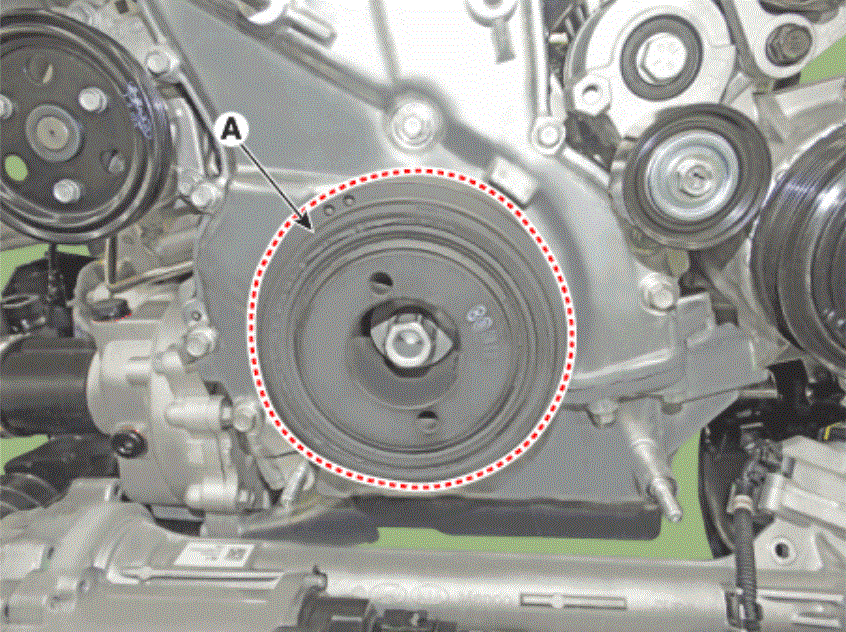

- Remove the crankshaft damper pulley (A).
Tightening torque:
114.7 - 120.6 N.m (11.7 - 12.3 kgf.m, 84.6 - 88.9 lb.ft) + [68 - 72°]
- Installation is in the reverse order of removal.
