Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the crankshaft damper pulley.

    (Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")

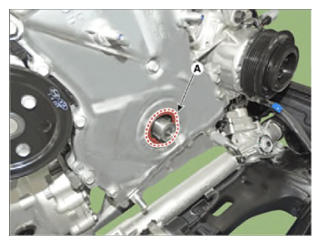

  2. Remove the front oil seal (A).
    G14720742Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the new front oil seal.
    1. Apply engine oil on the edge of new oil seal.
      NOTE:
      • Remove any foreign substances from the lip portion of the oil seal.

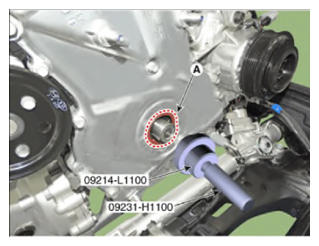

    2. Use SST (09214-L1100, 09231-H1100) and a rubber mallet to lightly tap and install the new front oil seal (A).
      G14720743Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the front oil seal.
