Air Cleaner Element Replacement
WARNING: This page is about a different variant/trim than selected.

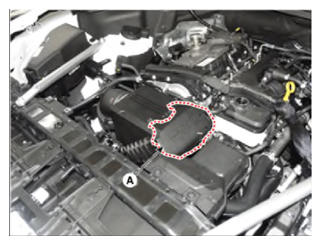

- Open the air cleaner element cover (A)

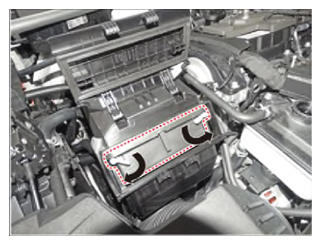

- Unlock the air cleaner element camshaft (A) by turning in the direction of arrow.

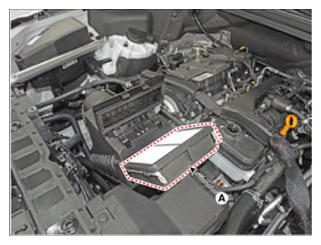

- Replace the air cleaner element (A) with a new one.NOTE:
- If there is foreign substances in the air cleaner assembly, clean the inside of air cleaner assembly and then replace the element.
- Fully insert the element into the air cleaner and then close the element cover (A) after turning the levers to "LOCK" position.
