Engine Reservoir Tank
WARNING: This page is about a different variant/trim than selected.
- Drain the coolant of the engine reservoir tank.

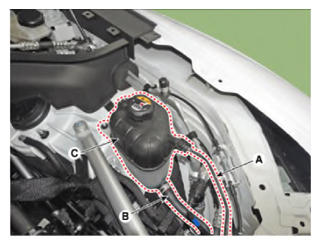

- Disconnect the over flow hose (A) and reservoir tank lower hose (B) and then remove the water cooled intercooler reservoir tank (C).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
- Install in the reverse order of removal.
- Refill the coolant.
