Water cooled intercooler radiator

WARNING: This page is about a different variant/trim than selected.

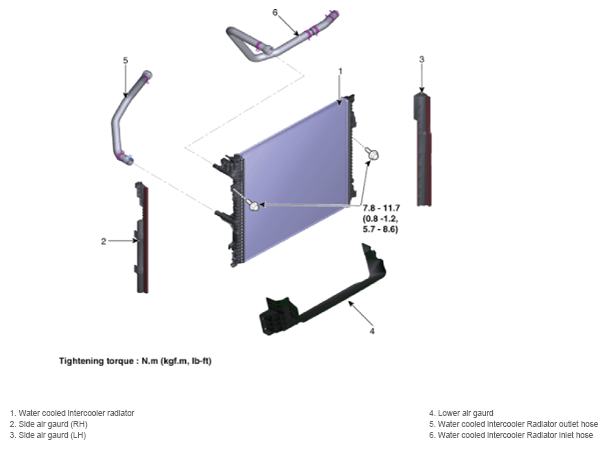

Fig 1: Water Cooled Intercooler Radiator Components Location With Torque Specification
G14720956Courtesy of HYUNDAI MOTOR AMERICA
