Removal and Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal.
- Remove the engine cover.
(Refer to the Engine And Transmission Assembly - "ENGINE COVER ")
- Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
- Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")

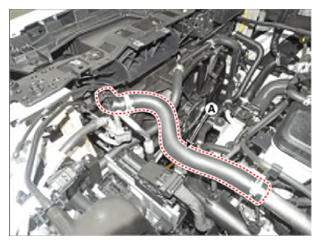

- Remove the radiator upper hose mounting bracket bolt (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

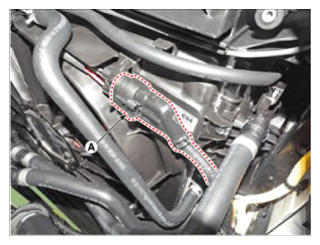

- Disconnect the cooling fan connector (A).

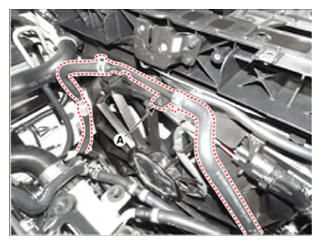

- Disconnect the radiator upper hose (A).

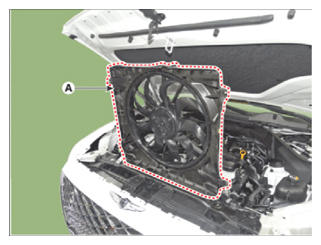

- Remove the cooling fan assembly (A).
Tightening torque:
4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb-ft)
