Repair Procedures: Disassembly
WARNING: This page is about a different variant/trim than selected.
- Remove the cooling fan (A) from the cooling fan shroud.
Tightening torque:
7.0 - 7.5 N.m (0.71 - 0.76 kgf.m, 5.1 - 5.5 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|

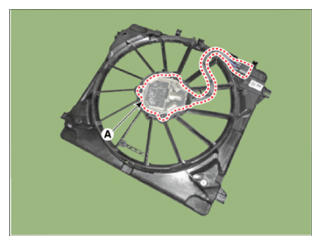

- Remove the cooling fan motor (A) from the cooling fan shroud.
Tightening torque:
4.5 - 5.0 N.m (0.46 - 0.51 kgf.m, 3.3 - 3.7 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
