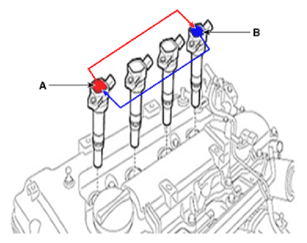

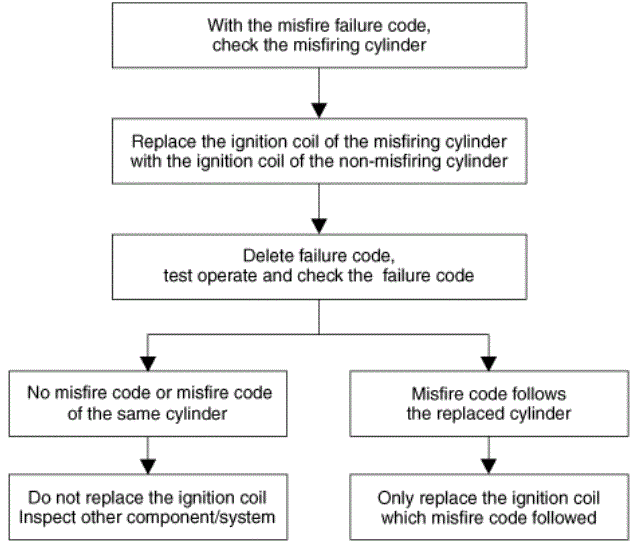

Test for changing position of each ignition coil
WARNING: This page is about a different variant/trim than selected.
- Ignition coil w/misfire code
- Ignition coil w/o misfire code
NOTE:
- Do not move with spark plug at the same time (move the ignition coil only)
