Oil Pump Chain

WARNING: This page is about a different variant/trim than selected.

Remove the timing chain.
(Refer to the Timing System - "TIMING CHAIN ")

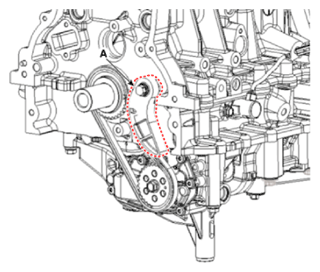

Remove the oil pump chain tensioner arm (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

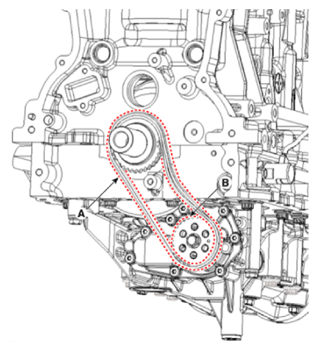

Remove the oil pump chain (A) with oil pump sprocket (B).
Tightening torque:

19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the other parts in the reverse order of removal.
Refill with the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
