Removal and Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the drive belt tensioner bracket.
(Refer to Drive Belt System - "DRIVE BELT TENSIONER ")

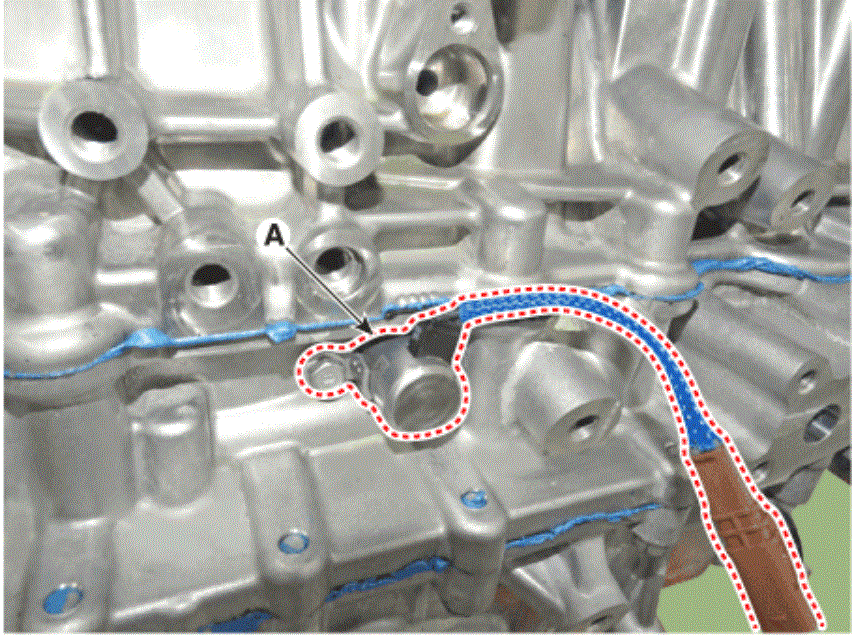

- Disconnect the oil pressure control solenoid valve wiring, and then remove the oil pressure control solenoid valve (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
NOTE:- When installing, apply engine oil to the O-ring.
- Install in the reverse order of removal.
