Removal and Installation
WARNING: This page is about a different variant/trim than selected.

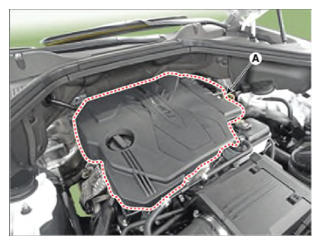

- Remove the engine cover (A).NOTE:
- To avoid damage, remove the engine cover on room temperature.
- Do not disengage both front and rear mounting point at the same time.

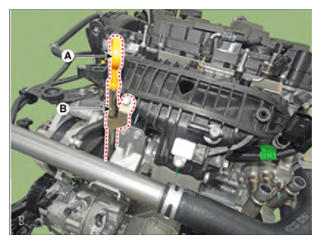

- Remove the oil level gauge (A) and then remove the oil level gauge pipe (B).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
NOTE:- Do not reuse the O-ring.
- When installing, apply engine oil to the O-ring.
- Install in the reverse order of removal.
