Evaporate Leakage Test

WARNING: This page is about a different variant/trim than selected.

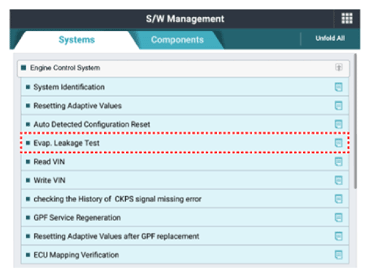

  1. Select "EVAP. Leakage Test".
    G14721264Courtesy of HYUNDAI MOTOR AMERICA

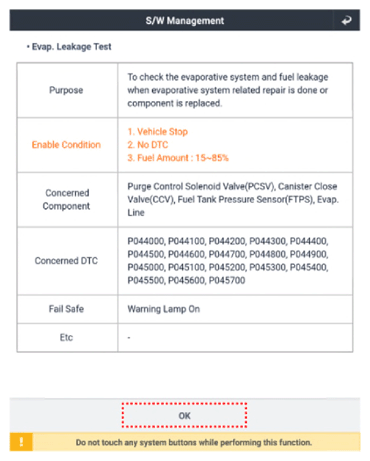

  2. The test shall be conducted in accordance with diagnostic tool instructions.
G14721265Courtesy of HYUNDAI MOTOR AMERICA

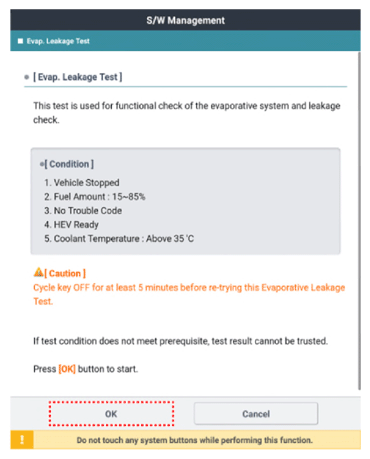

G14721266Courtesy of HYUNDAI MOTOR AMERICA

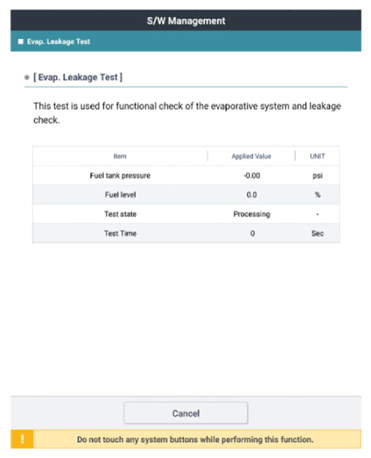

G14721267Courtesy of HYUNDAI MOTOR AMERICA

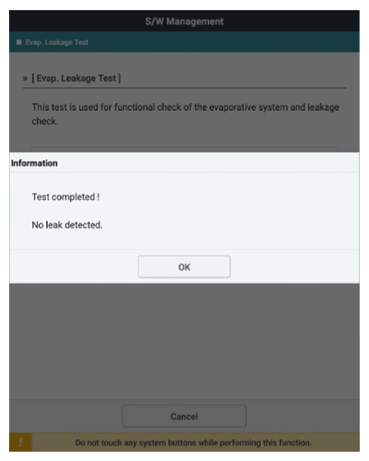

G14721268Courtesy of HYUNDAI MOTOR AMERICA
