Removal and Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

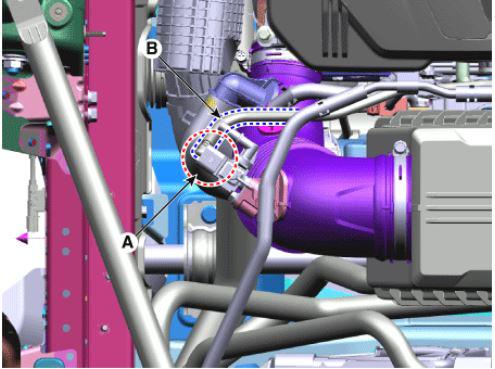

- Disconnect the dual purge ejector assembly connector (A) and dual purge ejector hose (B).

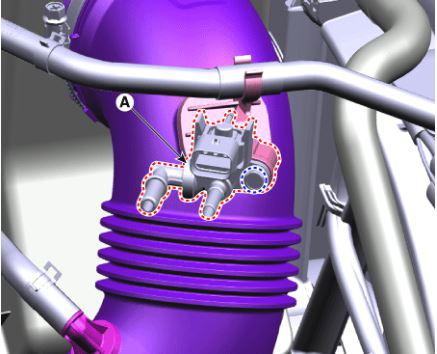

- Remove the dual purge ejector assembly (A) after removing the mounting bolt.
Tightening torque:
4.0 - 6.0 N.m (0.4 - 0.6 kgf.m, 3.0 - 4.3 lb.ft)
- Install in the reverse order of removal.
