Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.
- If the warning light illuminates due to the dual purge ejector nozzle being clogged, refer to the below for inspection.
Information

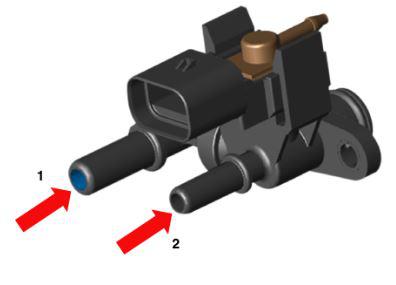

- Remove the foreign element with an air compressor gun.
- (1) Apply pressure to the nozzle
- (2) Apply pressure to the cover
- Maximum pressure
: 1-5 bar
