Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the valves.

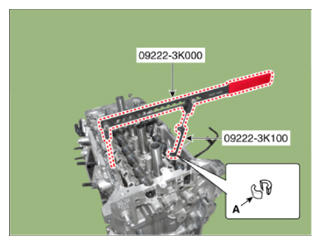

    1. Using the SST (09222-3K000, 09222-3K100), compress the valve spring and remove the valve spring retainer lock (A).
      G14720860Courtesy of HYUNDAI MOTOR AMERICA

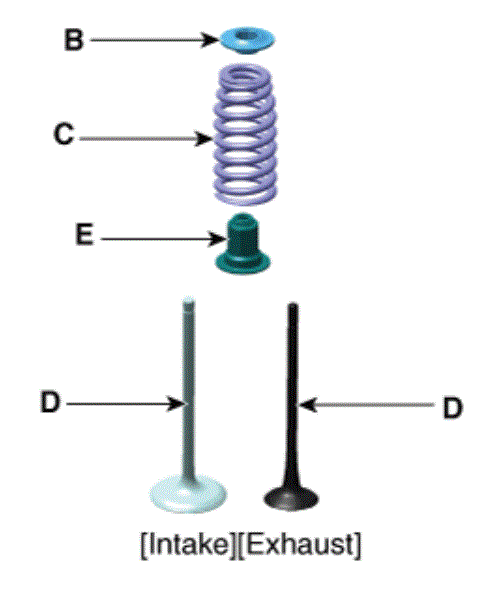

    2. Remove the spring retainer (B).
    3. Remove the valve spring (C).
    4. Remove the valve (D).
    5. Using long-nose pliers, remove the stem seal (E).
    G14720861Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Always use new valve stem seals.
    • Be careful not to change the position of the intake valve and exhaust valve.
