Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Use fender covers to avoid damaging painted surfaces.
- To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
Information
- Mark all wiring and hoses to avoid misconnection.
- Disconnect the battery negative terminal.
- Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")

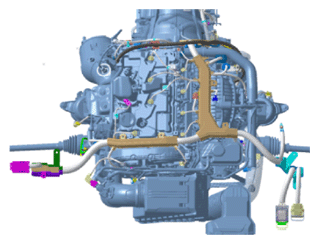

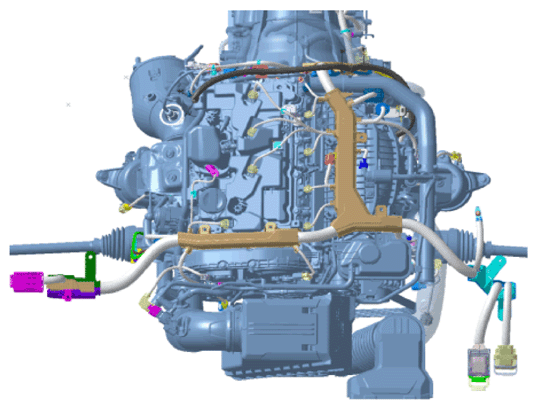

- Disconnect the engine wiring connectors and harness clamps around the cylinder head cover.

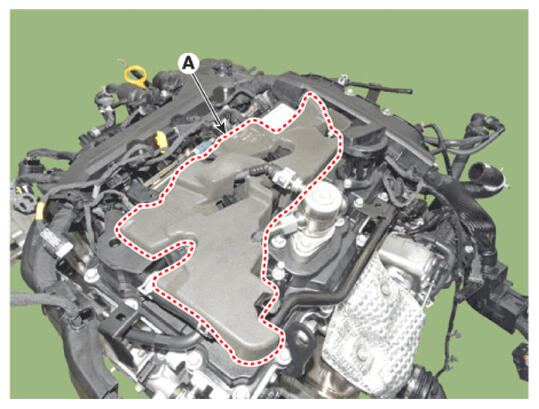

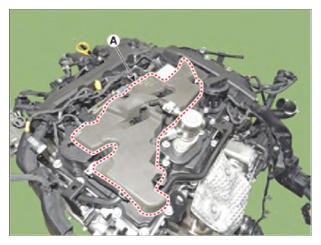

- Disconnect the cylinder head cover sound absorption cover (A).
- Remove the high pressure fuel hose (A).
- Remove the high pressure fuel pipe.
(Refer to Engine Control/Fuel System - "HIGH PRESSURE FUEL PUMP ")
- Remove the high pressure fuel pump.
(Refer to Engine Control/Fuel System - "HIGH PRESSURE FUEL PUMP ")
- Remove the ignition coils.
(Refer to Engine Electrical System - "IGNITION COIL ")

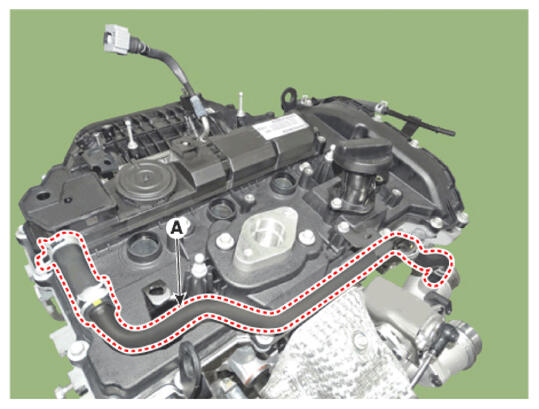

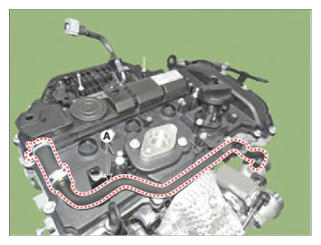

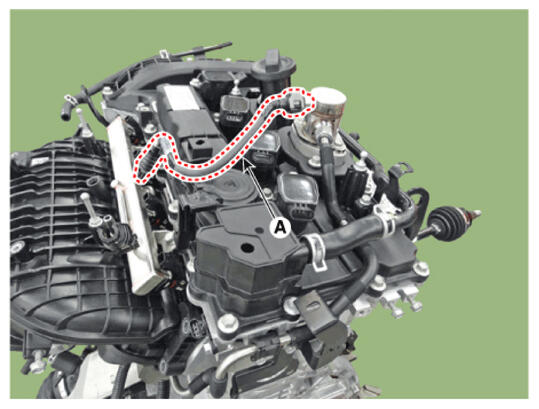

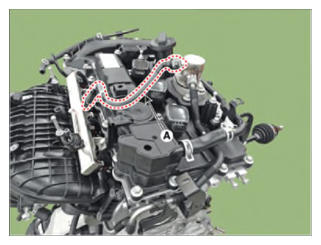

- Disconnect the breather hose (A).

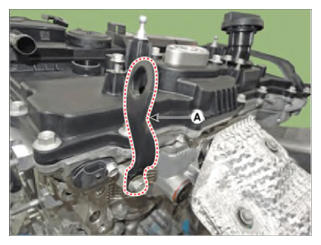

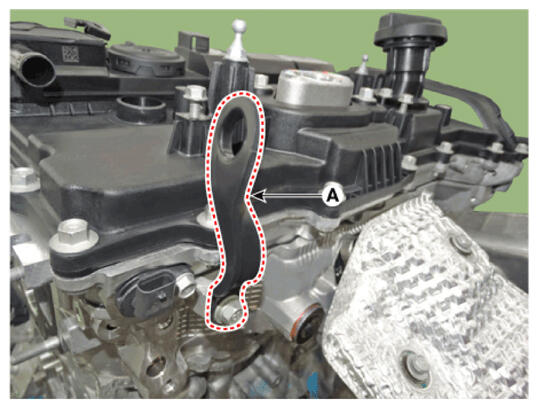

- Remove the engine hanger (A).

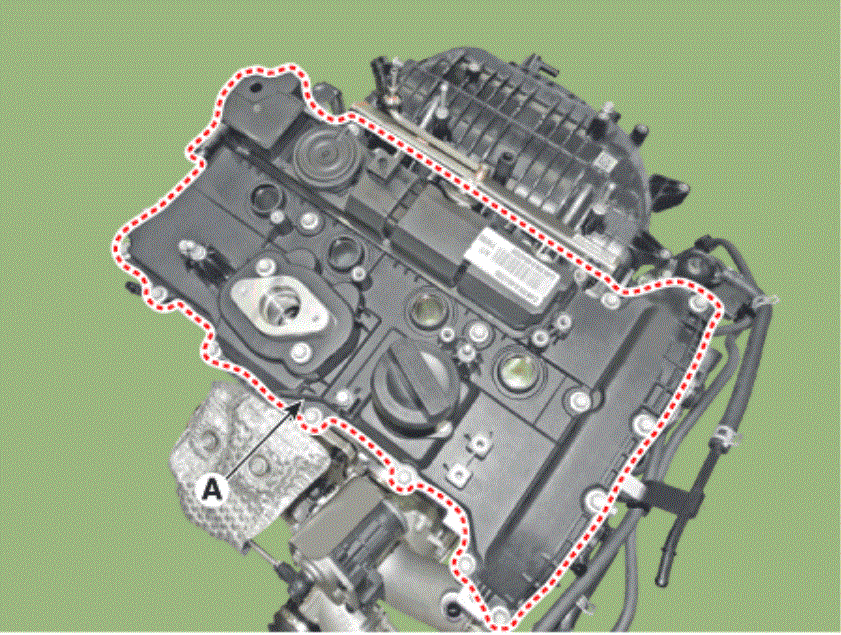

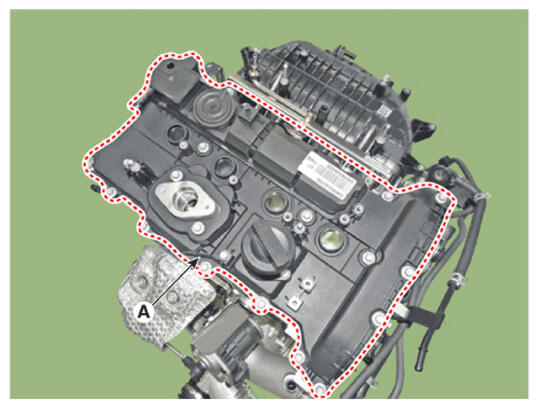

- Remove the cylinder head cover (A).
