Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

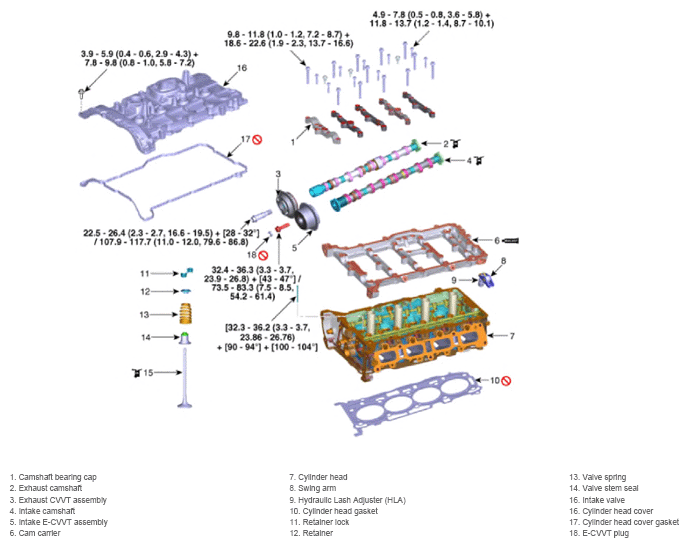

Fig 1: Cylinder Head Assembly Components Location With Torque Specifications
G14720792Courtesy of HYUNDAI MOTOR AMERICA
