CVVT and Camshaft Assembly

WARNING: This page is about a different variant/trim than selected.

Remove the timing chain.
(Refer to Timing System - "TIMING CHAIN ")

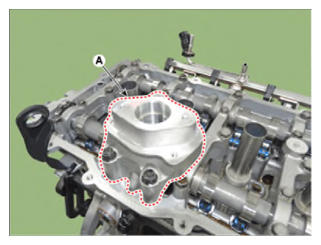

Remove the high pressure fuel pump bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

Remove the intake/exhaust CVVT and camshaft assembly.

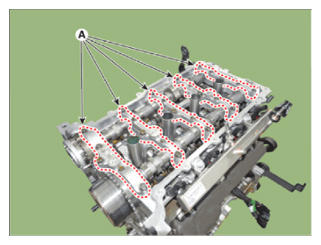

Remove the Camshaft bearing cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

NOTE:

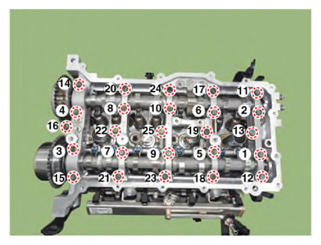

Remove the camshaft bearing caps in the sequence shown in the illustration below.

Fig 1: Camshaft Bearing Caps Bolts (Loosening Sequence)

Courtesy of HYUNDAI MOTOR AMERICA

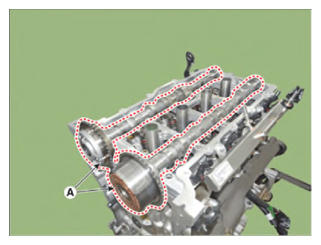

Remove the intake/exhaust CVVT and camshaft assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
