Wiring harness ground state inspection
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Ground state
- Mounting bolt tightening state (Chassis)
- Mounting bolt tightening state (Engine)
- Check the status of ground fault by chassis paint

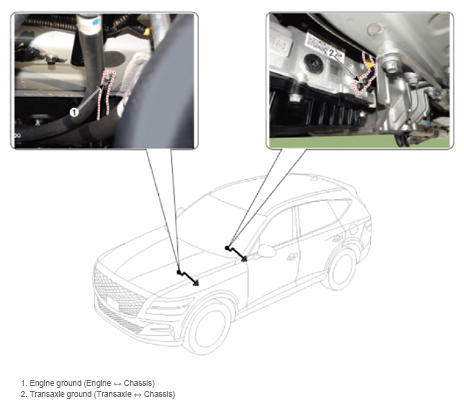

- Engine ground (Engine ↔ Chassis)
- Transaxle ground (Transaxle ↔ Chassis)NOTE:
- Check the ground point.
For wiring diagram information, refer to appropriate SYSTEM WIRING DIAGRAMS article - "Ground Point")
- Check the ground point.
