Section 14 (Charging System - 2.5L)
>>
DC DC Converter
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

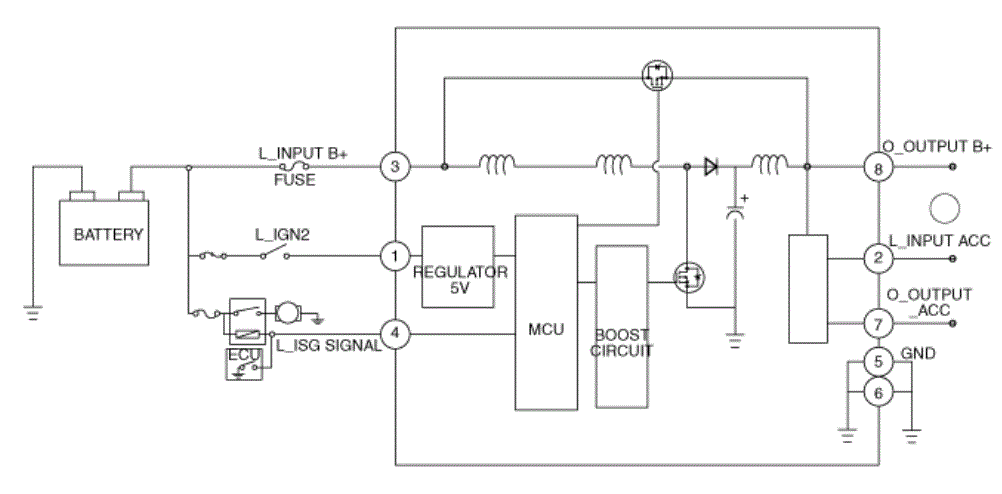

[200W]
Courtesy of HYUNDAI MOTOR AMERICA

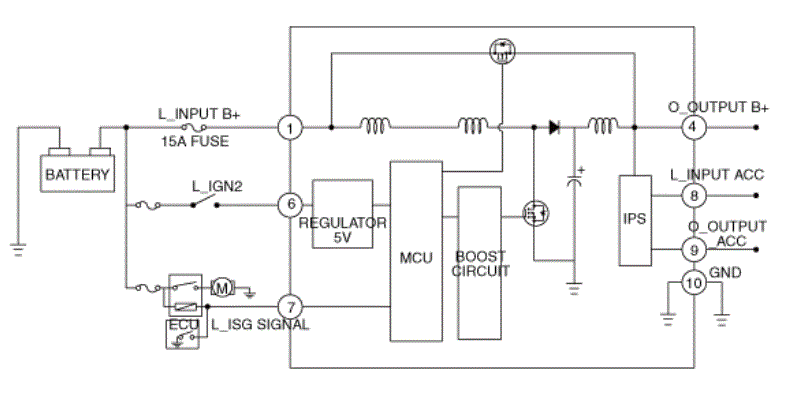

[450W]
Courtesy of HYUNDAI MOTOR AMERICA
